In-Depth Look at Boeing 767-400ER vs Boeing 737-900
Exploring the skies with two of Boeing’s renowned aircraft, the 767-400ER vs 737-900, reveals a fascinating study in aviation design and purpose. Each aircraft, with its unique capabilities and characteristics, serves a special role in connecting people and places across the globe. This article delves into a comparative analysis of the Boeing 767-400ER and 737-900, examining their histories, specifications, and the specific needs they meet within the airline industry. From the wide-body, long-haul champion 767-400ER to the efficient, versatile 737-900, we uncover how Boeing has crafted these aircraft to address different market demands, illustrating the company’s innovation and adaptability in an ever-evolving sector.
Boeing 767-400ER vs Boeing 737-900
The Boeing 767-400ER vs Boeing 737-900 represent two distinct classes within the Boeing aircraft lineup, tailored to different market needs. The 767-400ER, a member of the wide-body aircraft family, stands out for its significant size and capability, notably with a length of 61.40 meters and a wingspan of 51.90 meters, which dwarf the 737-900’s 42.10 meters in length and 35.80 meters wingspan. This size advantage extends to the 767-400ER’s wing area, engine thrust, and maximum takeoff weight (MTOW), allowing for a larger passenger capacity of 245 compared to the 737-900’s 177 passengers. Check out our comparison of the Airbus A350 XWB vs Boeing 787 Dreamliner to see how they differ.
Additionally, the 767-400ER’s extended range of 10,454 km is almost double that of the 737-900’s 5,084 km, supporting longer international routes. The 767-400ER’s superior total engine thrust of 564 kN, compared to the 737-900’s 242 kN, underlines its enhanced performance capabilities. Despite these differences, both aircraft share a commitment to efficiency and performance, with cruise speeds near M0.8, showcasing Boeing’s engineering adaptability across diverse operational demands. In summary, while the 767-400ER offers greater capacity, range, and power for long-haul flights, the 737-900 caters to airlines seeking efficiency and agility on shorter routes, reflecting Boeing’s diverse portfolio tailored to varying airline needs.
Below is a comparison table of the Boeing 767-400ER vs Boeing 737-900, highlighting their key specifications:
| Specification | Boeing 767-400ER | Boeing 737-900 |
|---|---|---|
| Length | 61.40 m (201 ft 5 in) | 42.10 m (138 ft 1 in) |
| Wingspan | 51.90 m (170 ft 3 in) | 35.80 m (117 ft 5 in) |
| Wing Area | 291.00 m² (3,132 ft²) | 12 5.00 m² (1,345 ft²) |
| Height | 16.80 m (55 ft 1 in) | 12.50 m (41 ft) |
| Engines | 2 | 2 |
| Thrust per Engine | 282 kN (63,500 lbf) | 121 kN (27,300 lbf) |
| Total Thrust | 564 kN (127,000 lbf) | 242 kN (54,600 lbf) |
| Maximum Takeoff Weight (MTOW) | 204,120 kgs (450,000 lbs) | 79,000 kgs (174,000 lbs) |
| Range | 10,454 km (5,645 nm) | 5,084 km (2,745 nm) |
| Cruise Speed | M0.8 | M0.785 |
| Passenger Capacity | 245 passengers | 177 passengers |
This table succinctly compares the two aircraft models across several dimensions, including physical dimensions, performance metrics, and capacity, illustrating the larger size, greater thrust, and longer range of the Boeing 767-400ER compared to the Boeing 737-900.

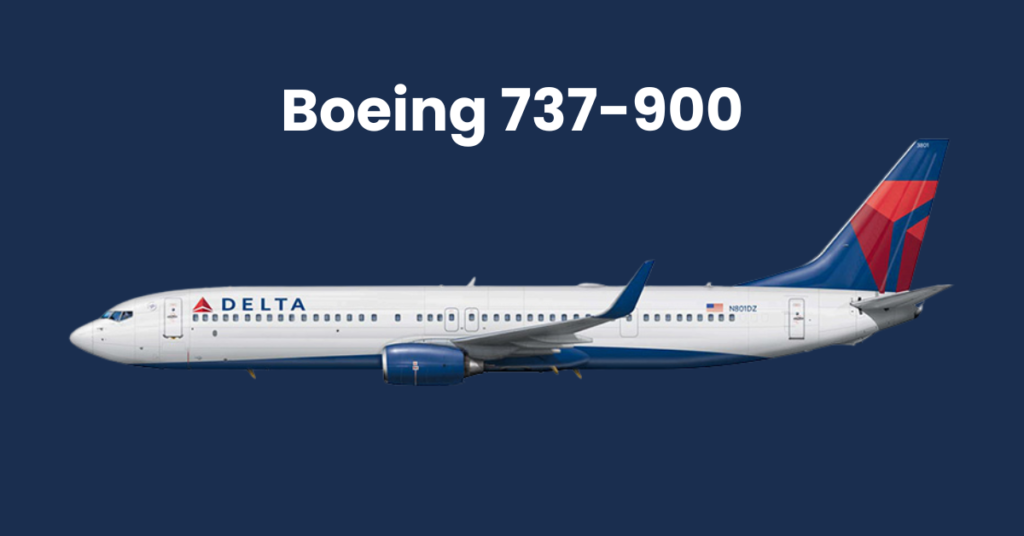

Boeing 737-900
The Boeing 737-900 is a versatile and popular airplane known for its reliability and efficiency. It’s a bit like the family car of the skies, not too big, not too small, but just right for getting you where you need to go. Designed for short to medium-haul flights, it can carry around 177 passengers comfortably, making it a favorite among airlines for domestic and regional routes. The 737-900 is part of Boeing’s 737 family, which has been flying around the world since the 1960s, constantly evolving with new technology to stay up-to-date. Its engines are powerful enough to ensure a smooth ride but also designed to save on fuel, making it kinder to the environment and helping airlines keep costs down. Inside, passengers can enjoy comfy seats and, depending on the airline, various in-flight entertainment options to make their journey more enjoyable. All in all, the Boeing 737-900 is a reliable workhorse that balances performance with passenger comfort, proving itself to be a valuable asset in the skies.

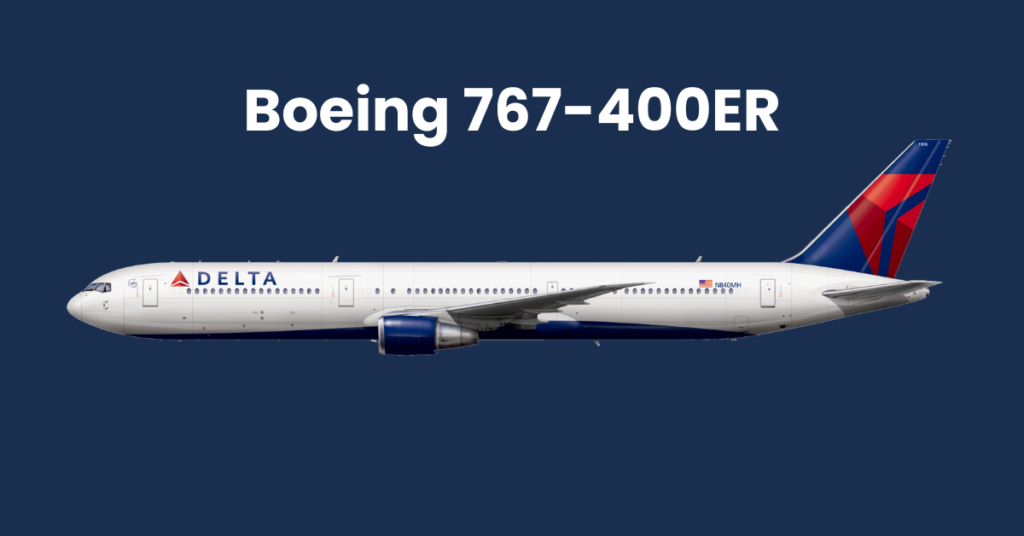

Boeing 767-400ER
The Boeing 767-400ER is like the long-distance runner of airplanes, designed to cover vast distances with ease and comfort. It’s a big, powerful aircraft that’s part of the wider Boeing 767 family, known for its wide-body design which means it’s wider across than most planes, allowing more room for passengers inside. This jet can carry around 245 passengers, making it perfect for international flights where comfort is key. With its two strong engines, the 767-400ER has the muscle to carry a full load of passengers and their luggage across oceans and continents without stopping for fuel. It’s equipped with large fuel tanks and advanced technology to make flights efficient and environmentally friendly. Inside, passengers can stretch out a bit more and enjoy movies or music on longer journeys, making the travel experience more pleasant. Whether you’re flying from one side of the world to the other, the Boeing 767-400ER is built to get you there comfortably and reliably.
Boeing 767-400ER vs Boeing 737-900 Engines
When comparing the engines of the Boeing 767-400ER and the Boeing 737-900, there’s a noticeable difference in power and capability between the two. The 767-400ER is equipped with two General Electric CF6-80C2/B8F turbofan engines that each produce a thrust of 282 kN (63,500 lbf), giving it a total thrust capability of 564 kN (127,000 lbf). This powerful setup allows the 767-400ER to carry more passengers and cargo over longer distances, perfectly aligning with its design as a wide-body aircraft meant for long-haul flights.
On the other hand, the 737-900, a narrow-body aircraft designed for shorter routes, has engines that are less powerful. Each of its two engines generates a thrust of 121 kN (27,300 lbf), totaling 242 kN (54,600 lbf) for the aircraft. This difference in engine thrust reflects the distinct operational roles of these aircraft: the 767-400ER’s engines are built for heavy loads and long distances, while the 737-900’s engines are optimized for efficiency on shorter, more frequent flights. In simple terms, the 767-400ER’s engines are like powerful workhorses meant to go the distance, whereas the 737-900’s engines are more like reliable sprinters, designed for speed and agility on shorter tracks.
Boeing 767-400ER vs Boeing 737-900 Fuel
When comparing the fuel capacities and efficiency of the Boeing 767-400ER and the Boeing 737-900, there are significant differences that reflect their distinct operational roles and design philosophies. The Boeing 767-400ER, designed for long-haul flights, has a substantial fuel capacity of 23,980 U.S. gallons (90,770 liters). This large fuel reserve enables it to cover great distances without the need for refueling, making it well-suited for international routes that span thousands of miles.
In contrast, the Boeing 737-900, which is tailored for short to medium-haul flights, does not require the same level of fuel capacity as its long-haul counterpart. While specific fuel capacity figures for the 737-900 are not provided here, it’s understood that this aircraft is designed with operational efficiency in mind for its intended routes. Consequently, the 737-900 would have a significantly lower fuel capacity compared to the 767-400ER, reflecting its role in covering shorter distances and its focus on cost-effective operation.
Design and Capacity
The Boeing 767-400ER (Extended Range) is a wide-body aircraft, which means it has two aisles, allowing for a larger seating arrangement and more space for passengers. It’s designed to carry between 240 to 304 passengers, depending on the seating configuration. This makes it ideal for long-haul flights, where comfort and space are more critical due to the longer time spent in the air.
On the other hand, the Boeing 737-900 is a narrow-body aircraft with a single aisle. It’s designed to carry up to 220 passengers in a single-class configuration, making it more suitable for short to medium-haul flights. The 737-900’s design focuses on efficiency and maximizing the number of passengers that can be carried over shorter distances.
Range and Performance
The 767-400ER is part of Boeing’s Extended Range lineup, equipped with engines and fuel capacity that allow it to travel longer distances without refueling. Specifically, it can fly up to 5,625 nautical miles (10,415 km), enabling airlines to operate non-stop flights over longer routes, such as transatlantic journeys.
In contrast, the Boeing 737-900, while being the largest variant in the 737 Next Generation family, has a maximum range of about 2,950 nautical miles (5,460 km). This range makes it an excellent choice for domestic flights or short to medium international routes, where the demand for direct flights is high, but the distance does not necessitate a wide-body aircraft.
Cabin Comfort and Amenities
Given its wide-body design, the 767-400ER offers a more spacious cabin, which can be a significant advantage on longer flights. Airlines have the flexibility to include features such as lie-flat seats for business class, larger lavatories, and more room for onboard amenities like bars or lounge areas. The wider cabin also allows for a 2-3-2 seating arrangement in economy class, reducing the number of middle seats and enhancing passenger comfort.
The 737-900, while optimized for efficiency and cost-effectiveness, offers a narrower cabin. This means the typical seating arrangement is 3-3 in economy class, with less space for additional amenities. However, airlines have worked to maximize comfort within these constraints, incorporating features like upgraded entertainment systems and reclining seats to improve the passenger experience on shorter flights.
Operational Efficiency
The Boeing 737-900 is renowned for its operational efficiency. Its design and technology enable airlines to reduce fuel consumption and lower operating costs, which is particularly beneficial for short-haul flights where cost efficiency is crucial. The aircraft’s popularity among low-cost carriers is a testament to its economic performance.
The 767-400ER, while more expensive to operate due to its size and the cost associated with long-haul flights, offers airlines the ability to exploit niche markets that require the range and comfort it provides. Its efficiency comes from its ability to carry a large number of passengers over significant distances, making it an invaluable asset for routes with enough demand to justify its operational costs.
Conclusion
In the aviation world, the Boeing 767-400ER vs Boeing 737-900 serve distinct yet critical roles. The 767-400ER, with its wide-body frame, excels in long-haul flights, offering extensive range and greater passenger capacity for international journeys. Contrastingly, the 737-900 caters to short-to-medium hauls, prized for its operational efficiency and flexibility in connecting various destinations. These differences underline Boeing’s dedication to meeting diverse airline needs, showcasing a commitment to innovation and performance across the board. Whether facilitating global travel or ensuring regional connectivity, both aircraft highlight Boeing’s integral role in the aviation industry.
FaQs
Which aircraft is better for long-distance flights, the 767-400ER vs 737-900?
The 767-400ER is better suited for long-distance flights due to its larger fuel capacity, extended range, and wider body, which can accommodate more passengers comfortably over longer distances.
Can the Boeing 737-900 be used for international flights?
Yes, the Boeing 737-900 can be used for international flights, particularly those that are short to medium in distance. Its efficiency and capacity make it a good choice for regional international routes.
Which aircraft offers more seating capacity?
The Boeing 767-400ER offers more seating capacity, accommodating up to 245 passengers, compared to the 737-900, which can carry up to 177 passengers.
Are both aircraft still in production?
As of my last update, Boeing continues to produce variations of the 737, specifically the 737 MAX series. The 767-400ER is not in mainstream passenger production but the freighter version of the 767 continues to be produced.
What is the main difference between the Boeing 767-400ER and the Boeing 737-900?
The main difference lies in their design and purpose: the 767-400ER is a wide-body aircraft built for long-haul flights with a larger passenger capacity, while the 737-900 is a narrow-body aircraft optimized for short-to-medium haul flights.
How does passenger comfort compare between the two aircraft?
The 767-400ER typically offers more space and comfort features suited to longer flights, such as wider seats and more legroom, whereas the 737-900 is designed to efficiently accommodate passengers on shorter trips.
